LC-1800 Auto Chemininescence Immunoassay Analyzer
Working principle:
Based on various antigen-antibody immunoreaction modes, the full automatic chemiluminescence immunoassay analyzer takes paramagnetic particles as the carrier, and makes useof the direct chemiluminescence method of acridinium ester. It produces unstable intermediates in excited state under the action of free energy released in chemical reaction. When the intermediates get back to the ground state from the excited state, the photons with the same energy level are released.
At this point, it measures such photons and thus conducts the quantitative analysis. Theluminescent intensity of the reaction is proportional to the concentration in the sample within the detection range.
Specifications:
|
General Information |
|
|
Throughput |
120 tests / hour |
|
Result |
15 mins for the first result |
|
Working principle |
Direct chemiluminescence method of acridinium ester |
|
Repeatability within batch |
CV ≤ 5% |
|
Dimensions |
433mm×680m×640mm (L× W × H) |
|
Net Weight |
62kg |
|

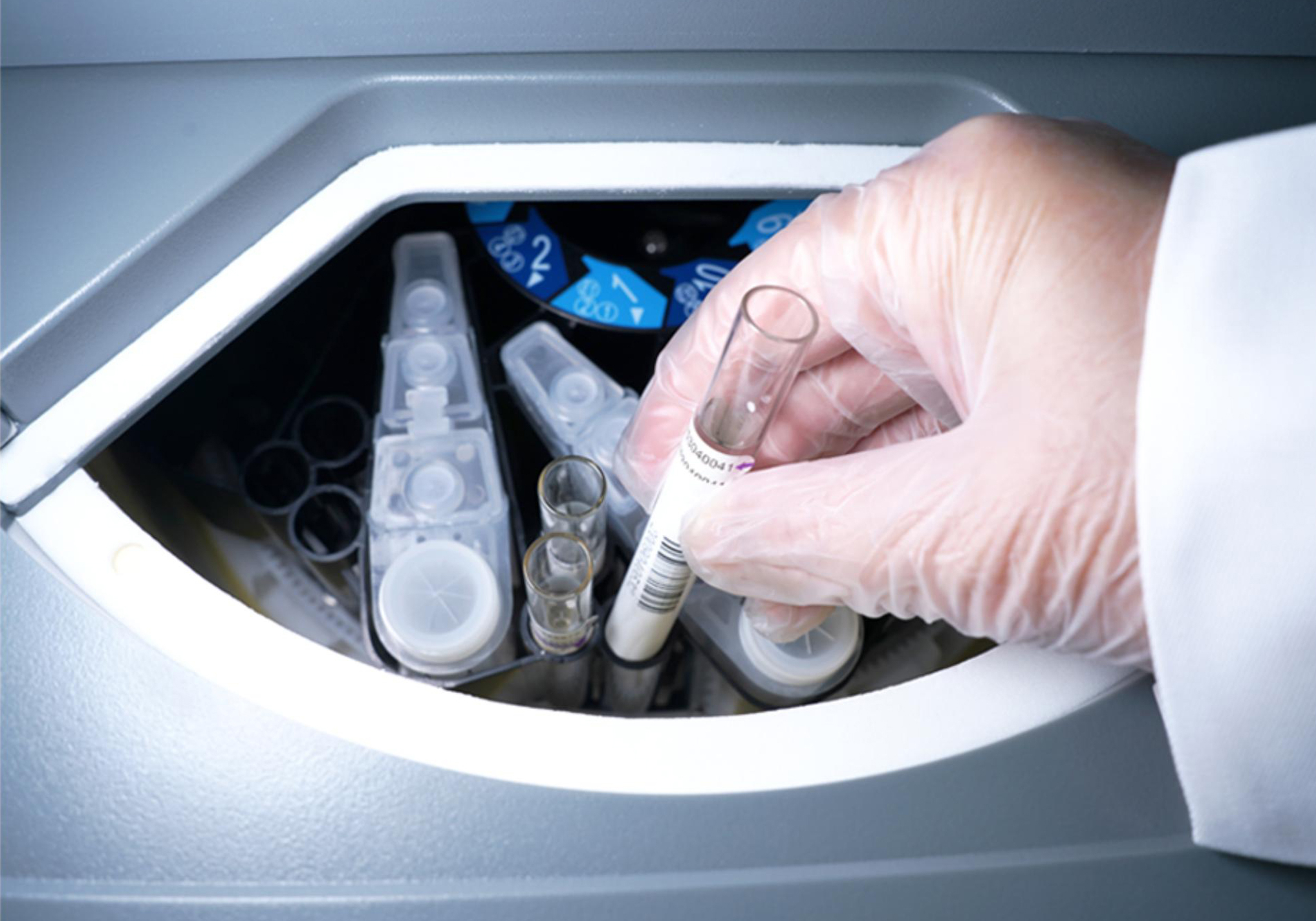

Samlple Supply System |
|
|
Sample position |
30 |
|
Sample volume |
10μL-200μL |
|
Sample loading |
Sample rack |
|
Sample type |
Serum / Plasma / Whole blood / Urine |
|
Reagent System |
|
|
Reagent position |
10 |
|
Reagent volume |
10μL-200μL |
|
Reagent loading |
Reagent carousel |
|
Reagent temperature |
24h refrigeration, reagent disk temperature: 2 °C - 8 °C |
|
Reaction System |
|
|
Capacity |
52 reaction vessels |
|
Reaction volume |
≤400μL/Test |
|
Incubation temperature |
37.0±0.3°C |
|
Mixing system |
Non-contact eccentric vortex mixer |
|
Operating Conditions |
|
|
Power supply |
AC220V, 50HZ |
|
Power consumption |
630VA |
|
Temperature |
10-30℃ |
|
Ambient humidity |
≦70% |
Test Items:
|
Inflammation |
PCT, IL-6, CRP |
|
Tumor Markers |
Ferritin, CYFRA21-1, SCC, NSE, HE4, TNFα, CEA, CA125, CA15-3, CA242, CA50, CA72-4, CA19-9 |
|
Gastric Function |
PGⅠ, PGⅡ |
|
Cardio |
NT-proBNP, hs-cTnI, CK-MB, H-FABP, MYO, HCY, Lp-pLA2, S100-β, BNP |
|
Thyroid |
TT3, TT4, FT3, FT4, TSH, TGAB, Anti-TPO |
|
Bone Metabolism |
25-OH-VD, BGP |
|
Sex Hormone |
β-HCG, PRL, LH, FSH, E2, AMH, Prog, T |
|
Hypertension |
ALD, Renin, Cort |
|
Thrombus |
FDP, D-Dimer |
|
Alzheimer's disease |
Aβ1-42, P-tau-181, AD7c-NTP |
